Magewell Modator 2U
The Modator family brings the reliability and low-latency performance of the Magewell’s standalone encoders and decoders to a high-density, modular, rackmount form factor. The Modator 2U chassis fits standard rack deployments and supports up to 10 Modator modules.
Designed for 24/7 Operation
Featuring dual power supplies and optimized heat dissipation for 24/7 operation, Modator 2U is well-suited to use cases with high reliability requirements.
Independent Encoding & Decoding
Each installed module can work independently to convert high-quality video and audio signals to and from IP streams.
LED Touch Screen
Through the LED touch screen, users can turn the chassis on or off; view the status of the chassis and each installed module; and configure network settings.
Mix-and-match your choice of Modator modules
(Module Options Subject to Change – Correct as of 06/05/2025)
Pro Convert for NDI to HDMI
Converts a live NDI® stream into HD HDMI signal
- A hot-swappable module to be installed in Magewell Modator chassis
- Decodes high-bandwidth NDI and NDI HX including earlier variants into HD HDMI
- Centrally manageable via the Modator chassis and Magewell Control Hub

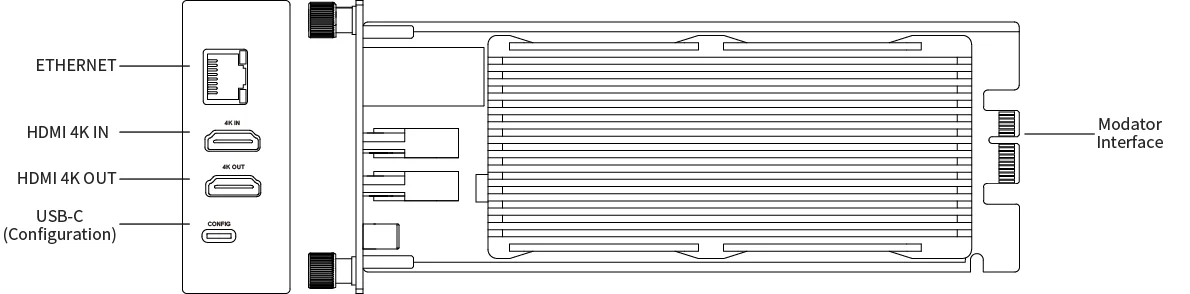

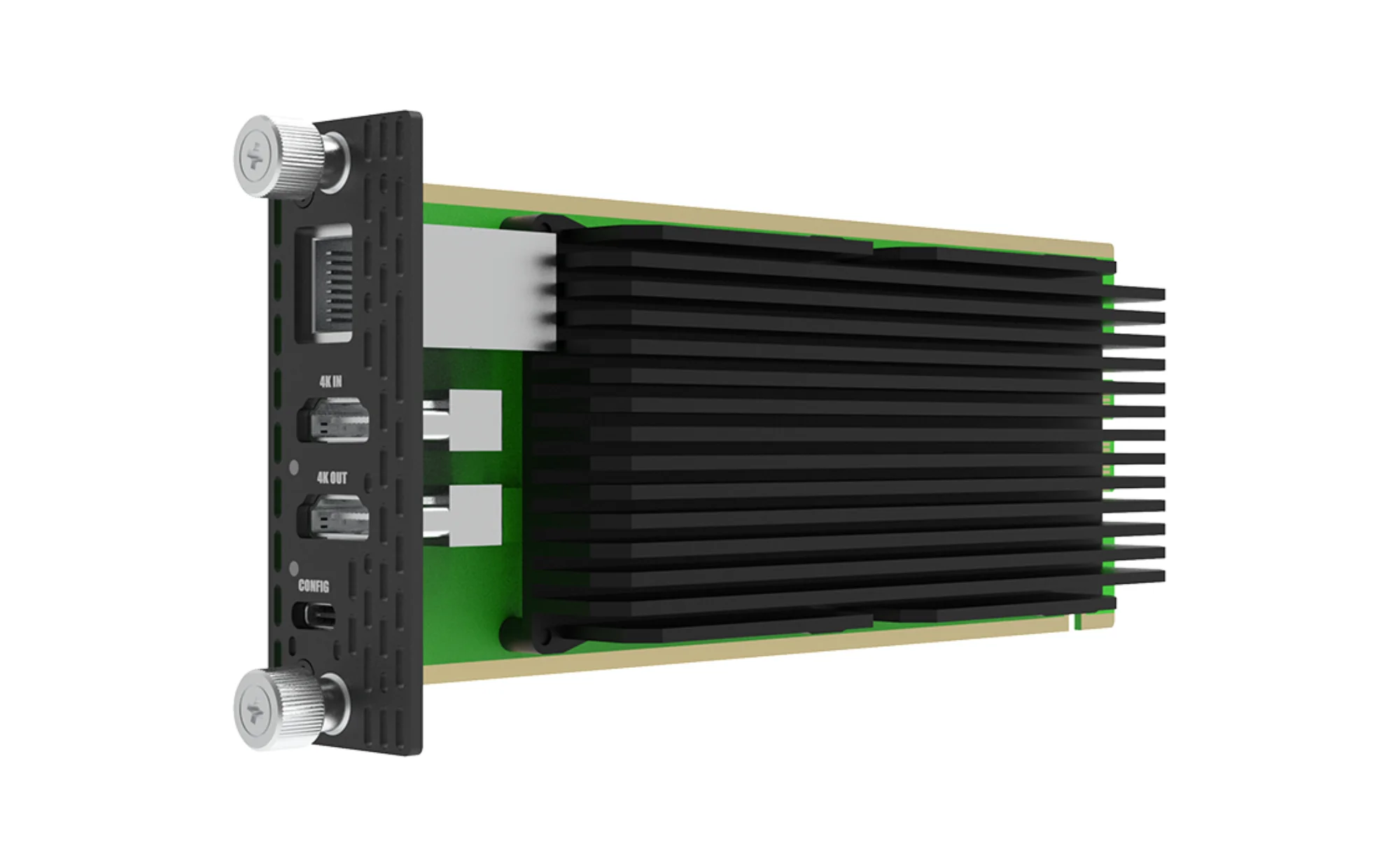

Pro Convert HDMI 4K Plus
Converts a 4K HDMI input signal into high-bandwidth NDI® with loop-through
- A hot-swappable module to be installed in Magewell Modator chassis
- Supports up to 4096×2160 60fps (4:4:4) input signals including 1080p 144fps
- Centrally manageable via the Modator chassis and Magewell Control Hub

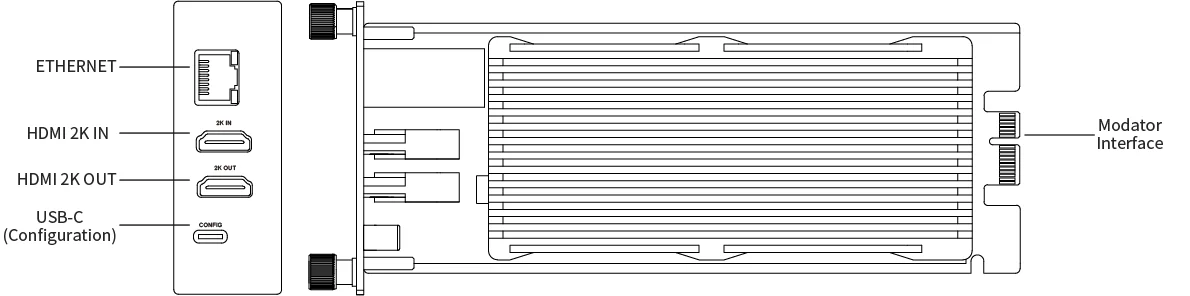

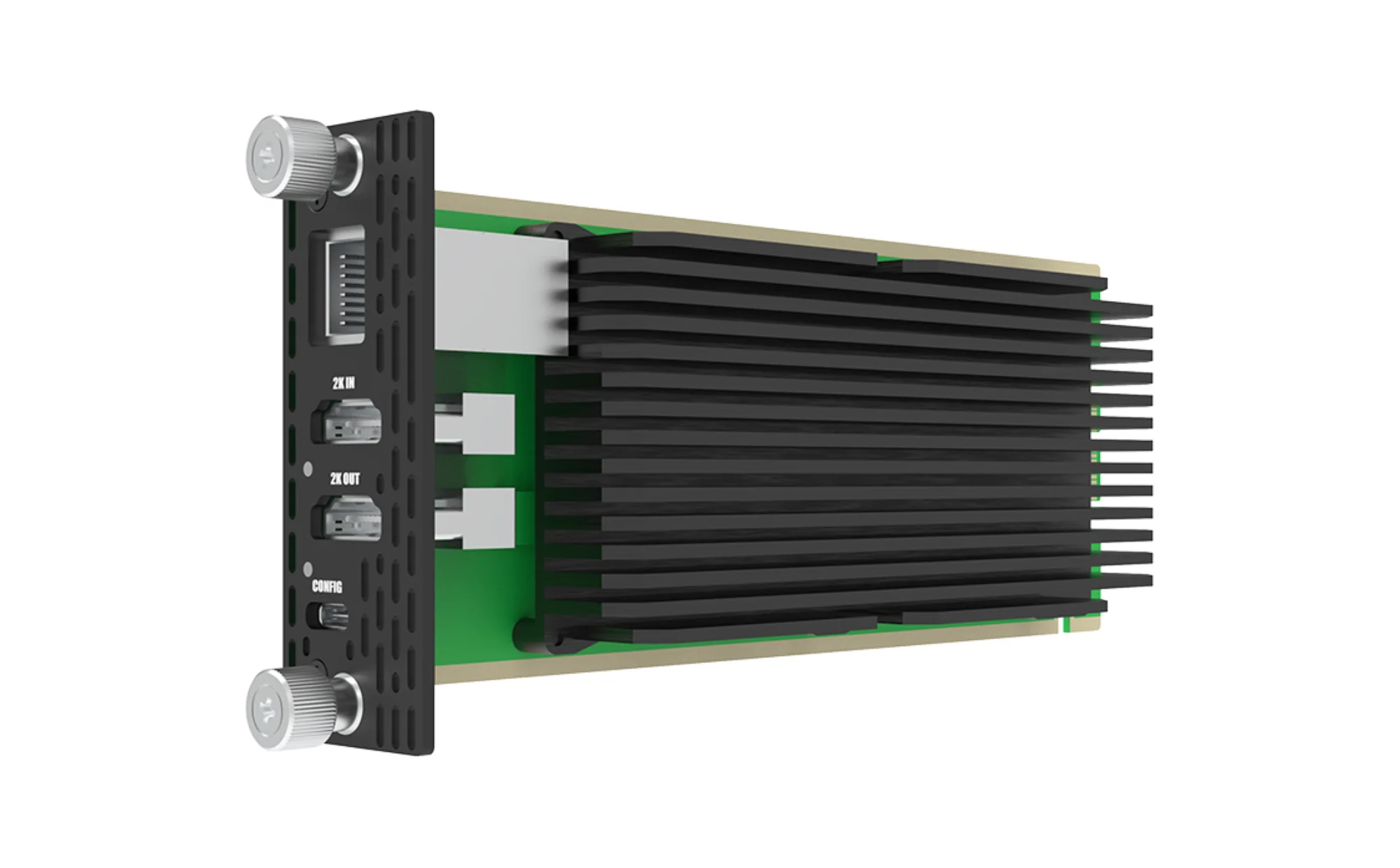

Pro Convert HDMI Plus
Converts an HD HDMI input signal into high-bandwidth NDI® with loop-through
- A hot-swappable module to be installed in Magewell Modator chassis
- Supports up to 4096×2160 60fps (4:2:0) or 30fps (4:4:4), down-converting them to HD NDI
- Centrally manageable via the Modator chassis and Magewell Control Hub
Pro Convert for NDI to AIO
Converts a live NDI® stream into HDMI and SDI
- A hot-swappable module to be installed in Magewell Modator chassis
- Decodes high-bandwidth NDI and NDI HX including earlier variants into HDMI and SDI
- Centrally manageable via the Modator chassis and Magewell Control Hub

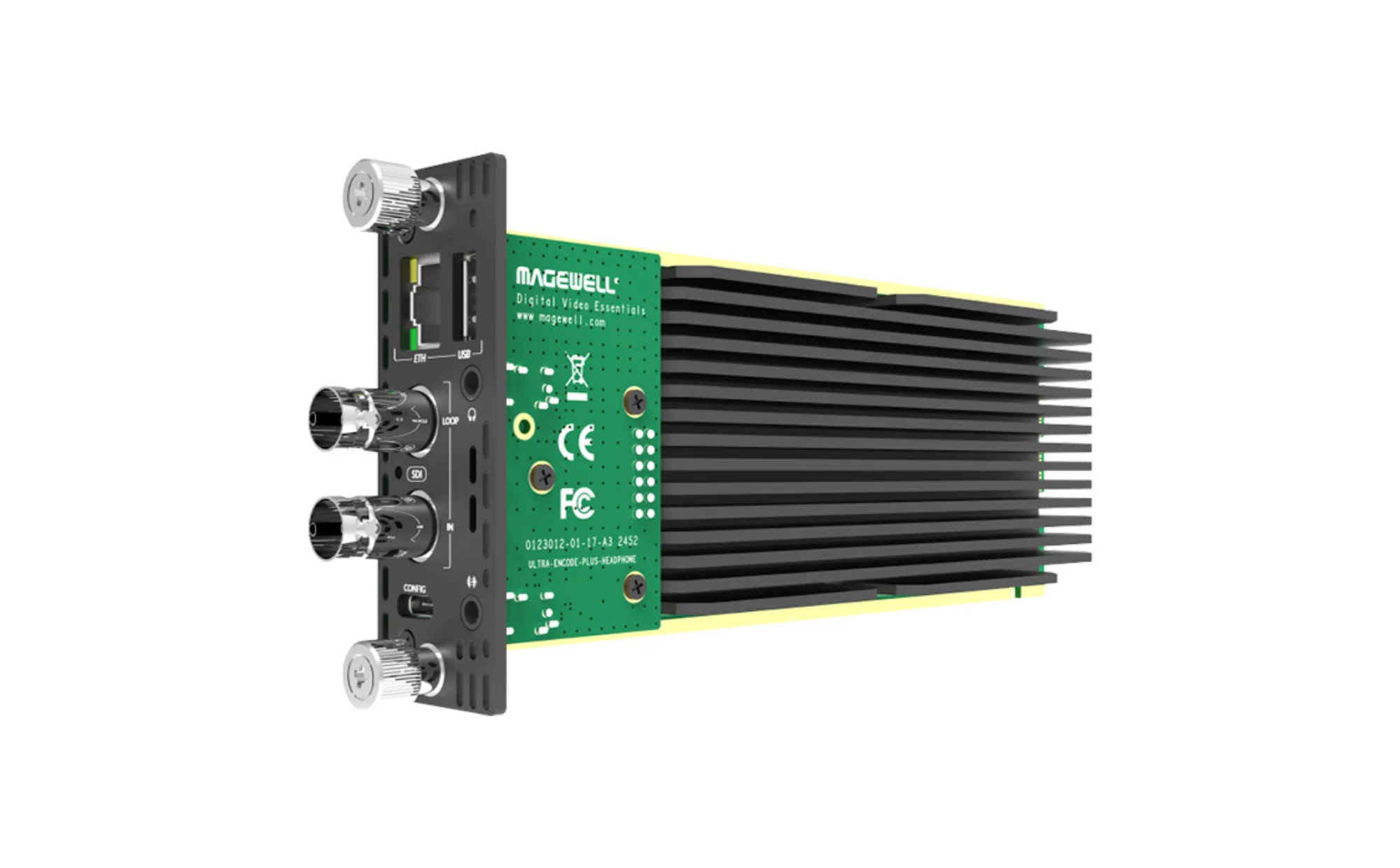

Ultra Encode SDI Plus
Encoding module for rack-mounted centralized deployment
- A hot-swappable module to be installed in Modator Chassis
- Supports common encoding formats and streaming protocols, including NDI® HX3
- Powerful encoding performance with support for streaming and recording schedule
- Centrally manageable via the Modator Chassis and Magewell Control Hub
Pro Convert 12G SDI 4k Plus
Converts a 4K 12G-SDI input signal into high-bandwidth NDI® with loop-through
- A hot-swappable module to be installed in Magewell Modator chassis
- Supports up to 4096×2160 60fps input signals
- Centrally manageable via the Modator chassis and Magewell Control Hub
DETAILS COMING SOON
Pro Convert for NDI to HDMI 4k Plus
Converts a live NDI® stream into 4K HDMI signal
- A hot-swappable module to be installed in Magewell Modator chassis
- Decodes high-bandwidth NDI and NDI HX including earlier variants into 4K HDMI
- Centrally manageable via the Modator chassis and Magewell Control Hub
DETAILS COMING SOON
