Core SWX Apex 360V Starter Kit

$1,995.00

This PRE-ORDER is ESTIMATED to be charged and shipped February 6, 2023. READ OUR PRE-ORDER POLICY

Core SWX Apex 360V Starter Kit Includes:

Designed for Lighting Equipment like Aputure 600 Series

Core SWX Apex 360V Starter Kit

$1,995.00

Core SWX Apex 360V Starter Kit Includes:
2 x APEX 14.8V Batteries and a Dual V-Mount Charger
Designed for Lighting Equipment like Aputure 600 Series

The all-in-one solution to get your high power LED lighting up and running with two Apex batteries and dual charger.

Designed to finally answer the call for a tailored on-board battery solution, the Apex LV battery packs are the ideal power solution for high power LED lighting.

The APX-360V offers a 367wh Lithium Ion v-mount solution capable of outputting up to 24A continuously as well as providing extended runtimes. With Apex the production team can focus on the video production rather than restricting light usage during the production because of limiting onboard powering options. And with Apex’s continuous 24A load output, the user will enjoy a more “true” runtime while operating the high power LED lighting systems.

Large capacity packs require fast chargers to recharge the packs. Core has developed an economical series of chargers dubbed “X2R” to allow for the Apex system to deliver to even the most budget conscience user.

While the GP-X2RV charger is ideal for the APX-360V, the pack can be charged on any 14.8v Lithium ion charging system but given the large capacity of the packs charge time will vary based on charger.

The Apex charger models are capable of either charging one pack in a little over 5hours or two Apex packs in less than 10 hours.

Core SWX APEX Batteries on Aputure

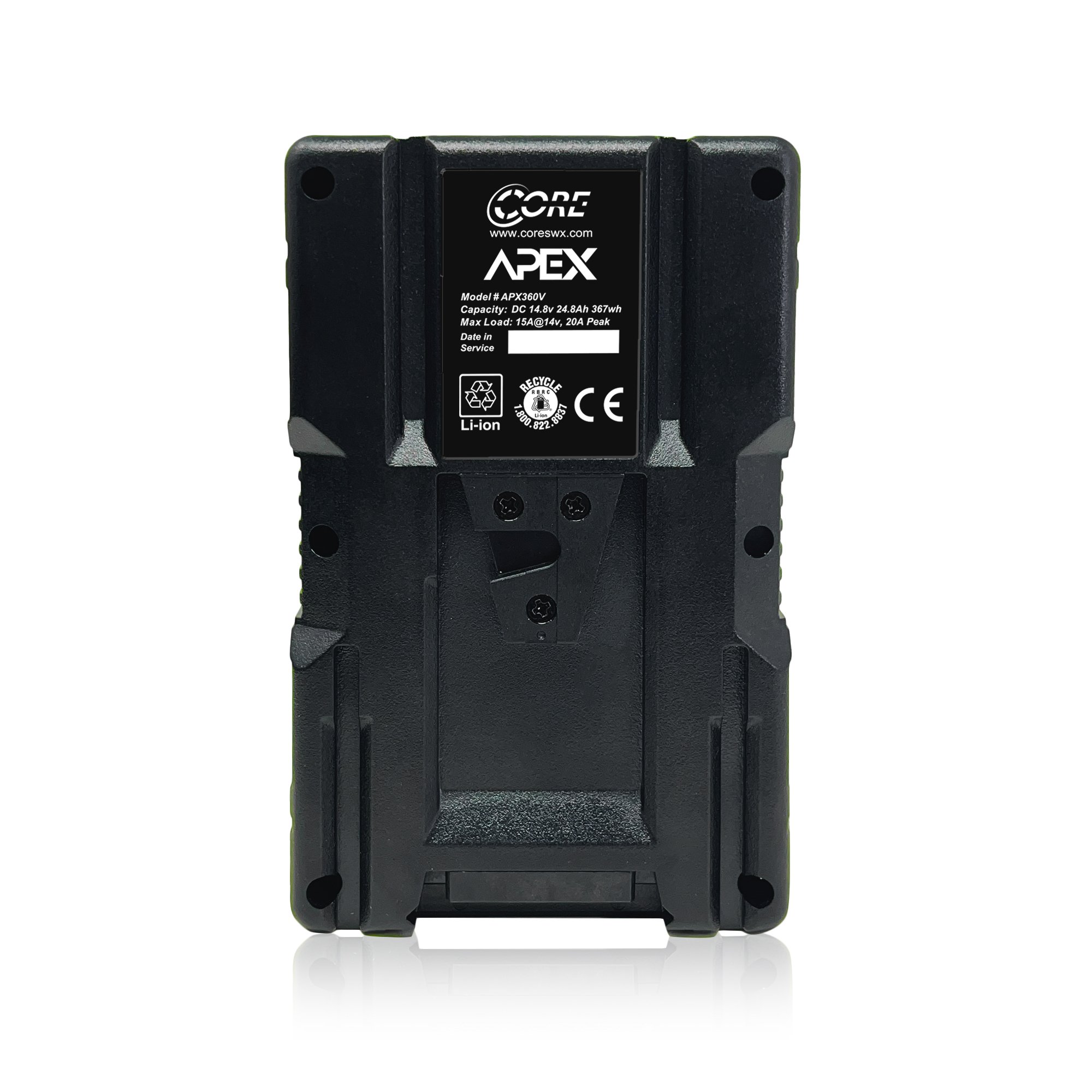

Core SWX Apex 360V 14.8V 367wh Lithium V-Mount Battery Supporting 24A Continuous Draw

Power your professional lighting equipment for long periods with the APEX 360V High-Capacity 14.8V/367Wh High-Voltage Li-Ion V-Mount Battery from Core SWX. This rugged, high-capacity battery features a 14.8V output and 367Wh capacity, and it supports a continuous 24A draw. It is designed with cooler operation for use with professional lighting equipment such as Aputure lights.

The battery provides long battery life and the 5-stage LED gauges can be viewed from all sides of the battery. The battery can be charged on a Core SWX APEX V-mount charger.

Key Features

The APEX 360 features 14.8V output and 367Wh capacity
Five-stage LED gauges display the battery power level and can be viewed on all sides
You can charge the battery on a Core SWX APEX V-mount charger
Durable casing ensures cool operation, making the battery ideal for powering lights

Compatible with but not limited to:

Aputure 300D II
Aputure 600D
Aputure Nova P300C

Core SWX Apex 360HV Specs

Mount / Series Type: V-Mount
Chemistry: Lithium-Ion
Battery Capacity: 367 Wh
Output Voltage: 14.8 VDC
Maximum Load: 24 A
Accessory Port: None
Dimensions (W x H x D): 88.9 x 160 x 96.5 mm
Weight: 1633 g

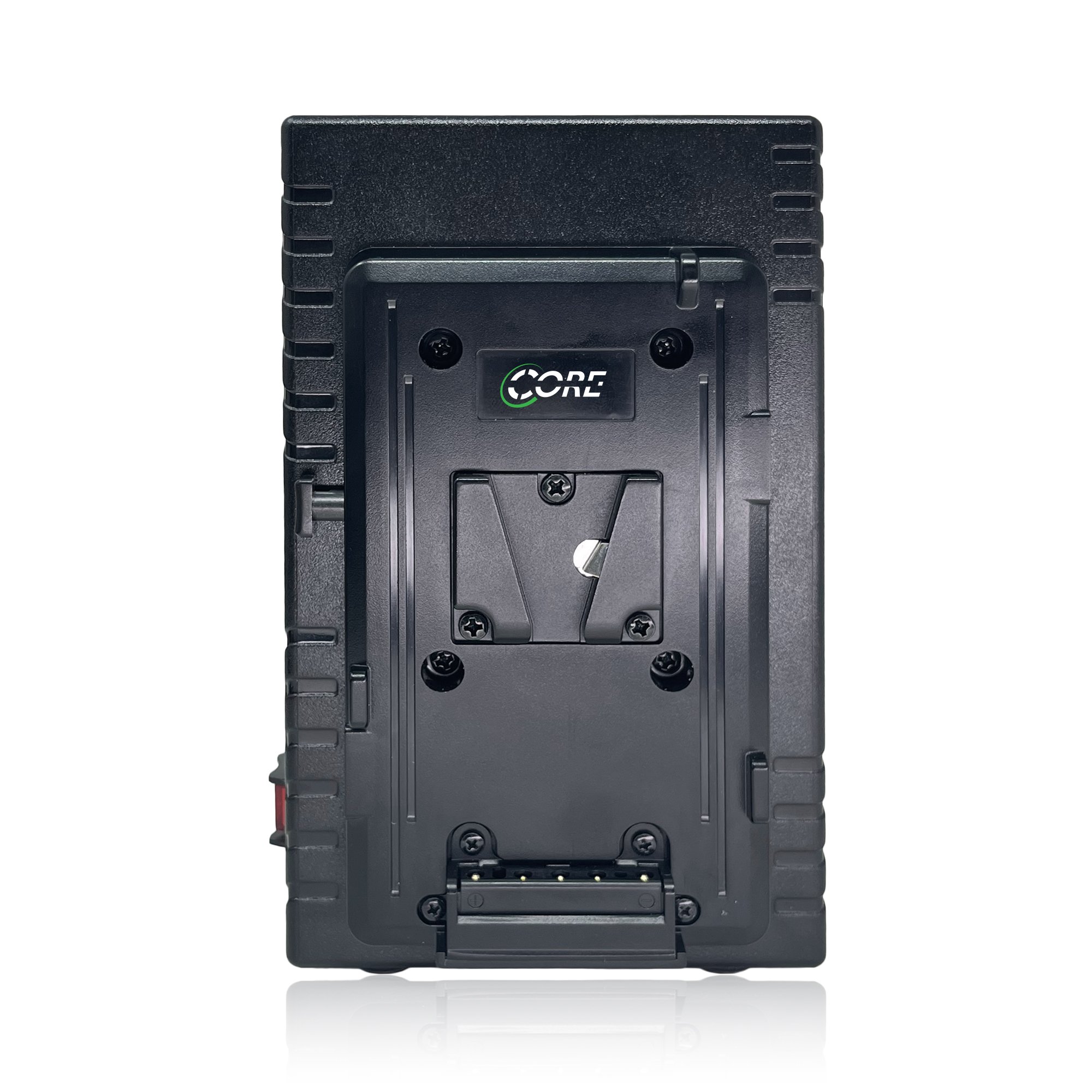

Core SWX GP-X2RV Charger for Apex Batteries

Charge your APEX 360 V-mount 14.8V batteries with the GP-X2RV Rapid 2-Position Charger from Core SWX. Taking advantage of the same technology built into previous Core SWX chargers, this compact charger can charge a single battery at a 5.2A rate at 16.8V or two batteries simultaneously at 2.6A. Since it sits vertically with two batteries mounted, the charger takes up less space than traditional flat chargers. The Apex charger models are capable of either charging one pack in a little over 5hours or two Apex packs in less than 10 hours.

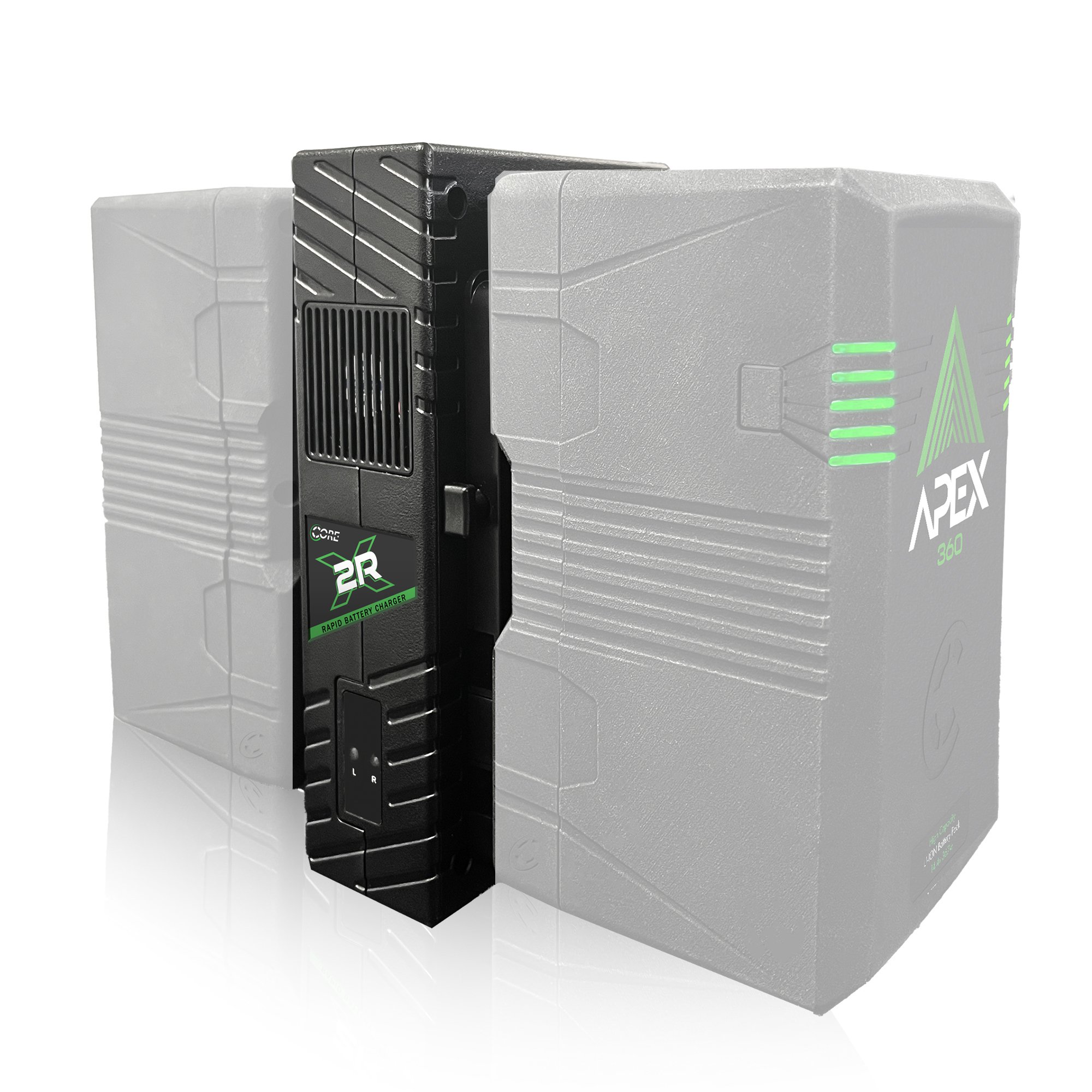

Core SWX GP-X2RV Rapid Battery Charger - with Batteries

Specs:

  • Input: 100V-240VAC 50/60Hz
  • Charge current: One pack 5.2A @ 16.8V
  • Two packs simultaneous at 2.6A
  • Size: 11.4cm x 14cm x 7.6cm
  • Weight: 590 grams
  • Mount type: V-mount
