Cradle for Bolt LT TX

$700.00

Cradle for Bolt LT TX by Wooden Camera allows you to seamlessly mount the Teradek transmitter in-line with V-Mount camera-back power.

CONTACT US FOR AVAILABILITY AND REGISTER/LOGIN FOR PRE-ORDER INFORMATION

Wooden Camera Cradle for Bolt LT TX

Cradle for Bolt LT TX by Wooden Camera allows you to seamlessly mount the Teradek transmitter in-line with V-Mount camera-back power.

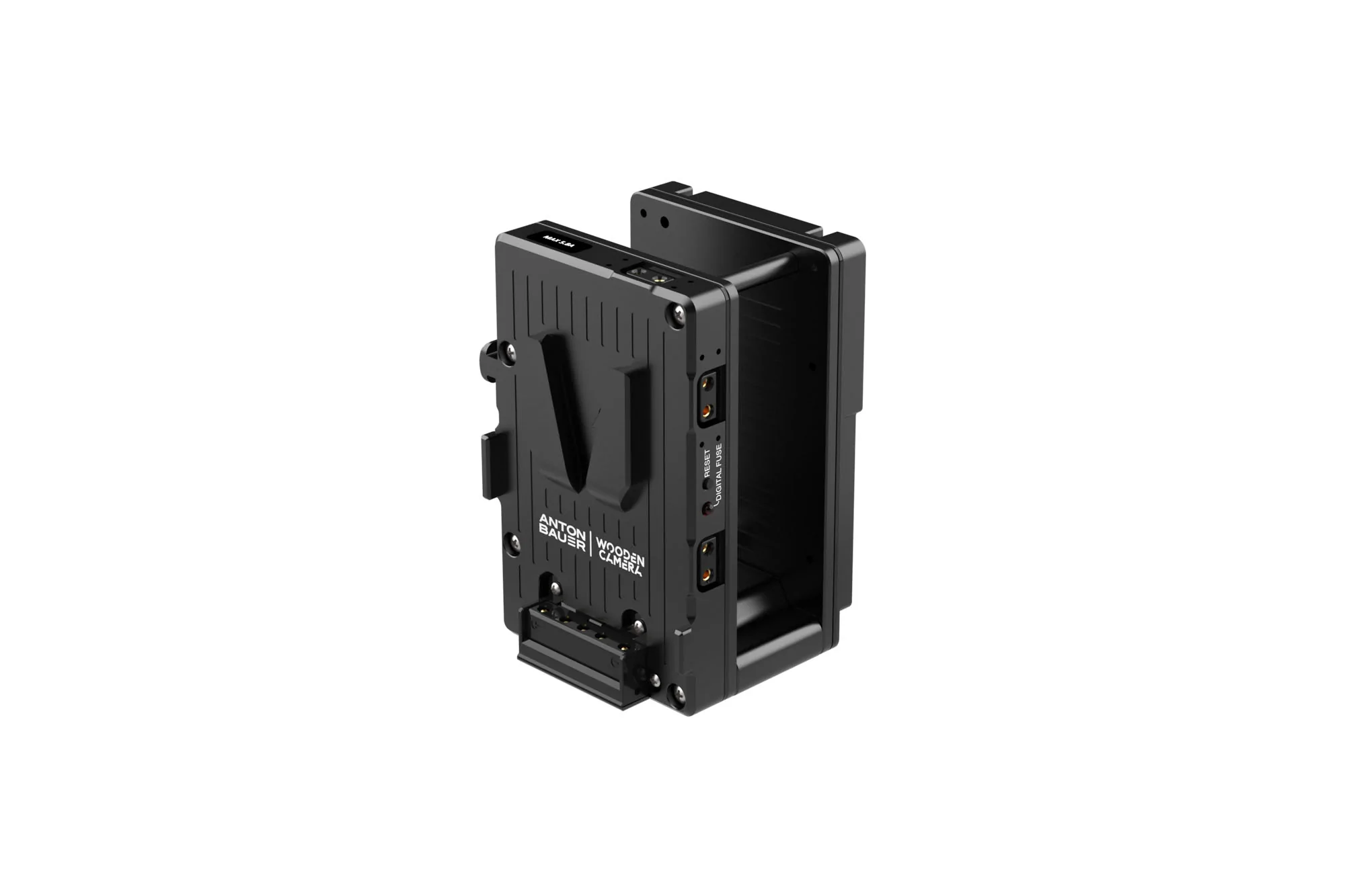

Cradle for Bolt LT TX - V-Mount - With Transmitter

Choose from a selection of Gold Mount, V-Mount, or V-Mount to Gold Mount. V-Mount to Gold Mount adapts a camera-side V-Mount to a Gold Mount on-board battery.

Rear (battery-side) battery plate features 3x D-Taps for accessory power at battery voltage (12-16V) and a digital fuse with reset button. Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

The Teradek Bolt LT TX mounts into the cradle via one captive 1/4-20 at the bottom of the unit. The bottom of the unit features two openings – one for USB access and the other for airflow ventilation.

Specifications:
Weight: 447 g (.99 lbs)
Dimensions: 77 x 88 x 119 mm (3.04 x 3.47 x 4.69 in)
