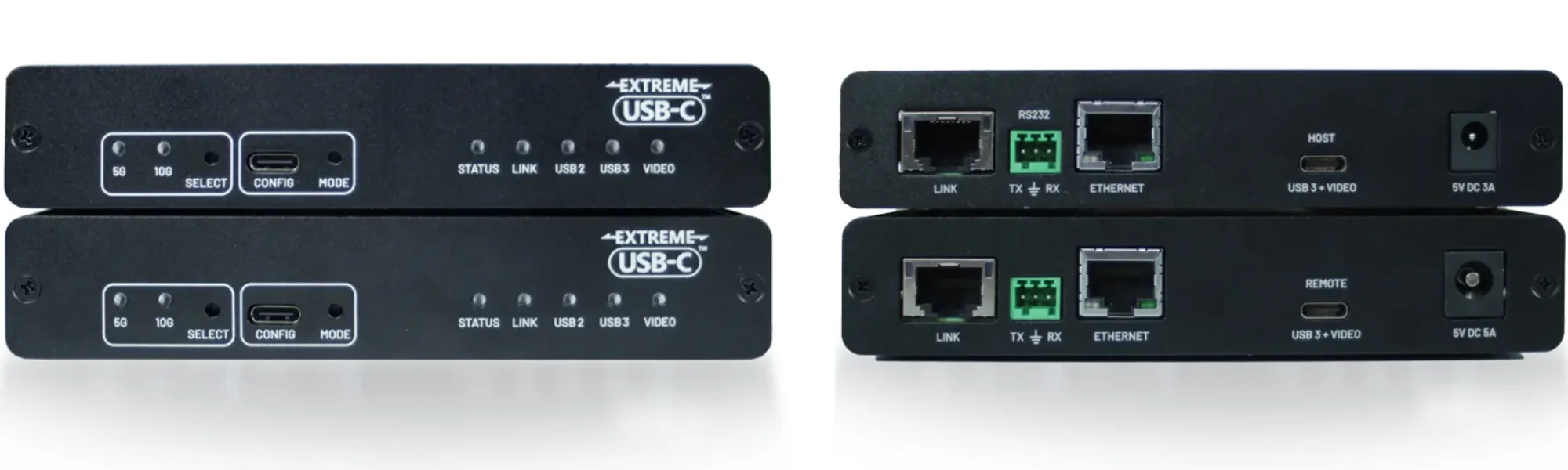

Icron Arbutus 63301
Icron Arbutus 63301 is the Worlds First DP Alt-Mode USB-C Extender over CAT6, engineered for a true one cable extension. Designed for industrial environments, with rugged housing and robust EMI shielding, Arbutus 63301 extends USB 3.2 Gen 1 and DisplayPort Alt Mode up to 100 meters over CAT 6a/7 cable with plug-and-play compatibility, meaning no additional software or drivers required.
Arbutus 63301 Common Applications
- Remote Touchscreen Workstations – Extend USB-C connections to interactive displays combining high-resolution video and touch input, ideal for kiosks, control panels, and factory floor interfaces.
- Digital Signage with USB Interaction – Deploy signage systems with touchscreen or peripheral interactivity (e.g., barcode scanners, card readers), using a single USB-C cable for video and data.
- Medical Diagnostics Stations – Enable mobile or wall-mounted touch displays with connected imaging devices and data peripherals in examination or diagnostic rooms.
- Retail & Point-of-Sale Systems – Extend high-speed connections to USB-C based POS terminals with built-in display, card reader, and customer interaction zones at remote checkout counters.
- Remote Studio or Editing Bays – Run USB-C to display-and-peripheral combos like USB capture devices, high-speed SSDs, and video monitors for post-production setups.
The Icron DP 4K Video + USB 3-2-1 Arbutus 63301 is an all-in-one video and USB extension system. Utilizing a single USB-C port, the 63301 can extend 4K video (DP Alt mode) and USB 3-2-1 over a CAT 6a cable offering a true one cable extension solution.
Unique to this model is the ability to enable DP Alt mode video on a USB-C connection supporting up to 4Kp60 4:4:4 simultaneously with USB 3.2 Gen 1. All USB transaction types are supported with no hub tiers consumed, and up to 100m point-to-point extension distance.
Arbutus 63301 Key Features
- DP Alt mode up to 4Kp60 4:4:4 at 2 lanes HBR3
- HDCP 2.2 support
- Extends all USB 3.2 Gen 1, 2.0 and 1.1 devices simultaneously with 4K video up to 100m over CAT 6a or better cabling
- The REX (Remote Extender) can power a single USB-C device up to 15W
- Supports all USB transaction types (Control, Bulk, Interrupt, ISO)
- No USB hub tiers consumed (hub-less)
- TAA Compliant
