Icron Ranger 2304PoE
3-Port LEX / 4-Port REX USB 2.0 Extender System with PoE
The Icron USB 2.0 Ranger® 2304PoE enables you to connect and extend all USB 2.0 device types to hosts across a Power over Ethernet enabled Gigabit Ethernet Local Area Network (LAN) using existing cabling. This ExtremeUSB® extender system features 4-ports on the REX and three additional ports on the LEX eliminating the need to connect an external USB hub. Perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
The Ranger 2304PoE enables you to connect and extend all USB 2.0 device types to hosts across a PoE+ enabled Gigabit Ethernet Local Area Network using existing cabling.
This system extends peripherals such as flash drives, keyboards, mice and interactive whiteboards across a LAN and supports isochronous devices such as webcams. Three USB A ports are available on the local extender, eliminating the need to connect an external USB hub to the host.

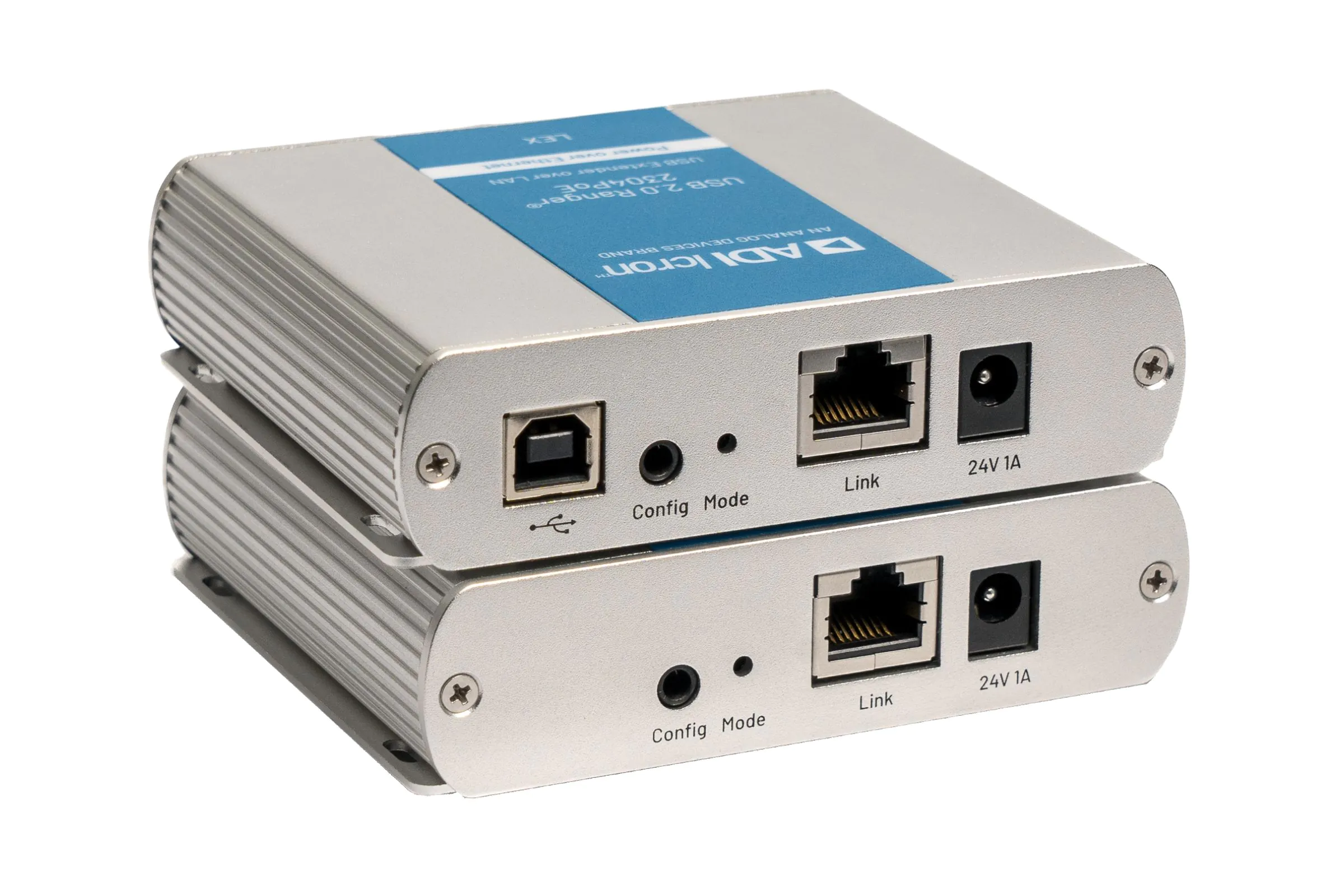

An optional 24V 1A AC power adapter can be connected to either the LEX or REX and is sold separately. If power is present at both the RJ45 Link and DC power ports, the DC power adapter serves as the primary source with PoE as the backup.
Ranger 2304PoE Features
- Extends USB over an IEEE 802.3at PoE+ capable 1000Mbps LAN
- USB 2.0 throughput up to 480Mbps point-to-point or over LAN
- Pre-paired network configuration for simple installation
- Supplies up to 1.5A at each port, 3.5A total
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems; Windows®, macOS™, Linux® and ChromeOS™
What’s Included in the Box?
- USB 2.0 Ranger 2304PoE LEX
- USB 2.0 Ranger 2304PoE REX
- USB 2.0 A/B Cable
- Quick Start Guide
Ranger 2304 Common Applications
- Medical Workstations – Connect diagnostic devices, imaging tools, and peripherals seamlessly.
- Broadcast & AV Setups – Extend multiple USB cameras, audio interfaces, and control surfaces.
- Industrial Control Panels – Manage USB-connected sensors, controllers, and user interfaces from a centralized location.
- Education & Training Labs – Power interactive setups with multiple whiteboards, keyboards, and USB hubs.
- Digital Signage & Kiosks – Support multiple interactive components from one extender.
